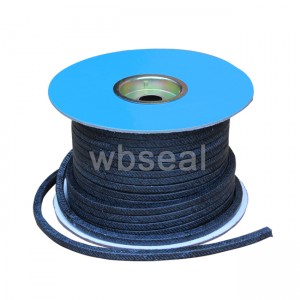

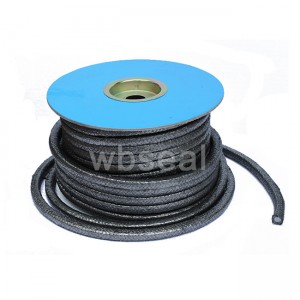

Carbon Fiber Packing
Code : WB-201
Short Description:
Specification: Description:Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage. CONSTRUCTION: WB-201R Carbon Fiber Packing Reinforced with Inconel wire The Inconel wire reinforcement provides increased mechanical strength, usually for static. APPLICATION: To be used as packing material for stuffing boxes of pumps or valves in hig...
Product Detail
Product Tags
| Specification: |
Description:Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage.
CONSTRUCTION:
WB-201R Carbon Fiber Packing Reinforced with Inconel wire
The Inconel wire reinforcement provides increased mechanical strength, usually for static.
APPLICATION:
To be used as packing material for stuffing boxes of pumps or valves in high pressure and high temperature application. To be used as stand-alone packing or in combination with 100 as anti-extrusion ring. In combination with pure graphite ring it presents the perfect seal for dry-running equipment like ventilators and fans.
Handle water, steam, acids and alkalis for power stations, refineries, boiler plants etc. Seats quickly, break-in without extensive adjustments. Style 240E is commonly used in steam turbines, high temperature motor-actuated valves and for high pressure, high temperature valve application in general.
PARAMETER:
|
Temperature |
-50~+650 °C |
|
|
Pressure |
Rotating |
25 bar |
|
Reciprocating |
100 bar |
|
|
Valve |
200 bar |
|
|
Shaft speed |
20m/s |
|
|
PH Range |
2~12 |
|
|
Density(appr.) |
1.2~1.4g/cm3 |
|
PACKAGING:
in coils of 5 or 10 kg, other package on request.
